Pixhawk 2.4.8 Drone Flight Controller PX4 32 Bit Autopilot – Good Quality

Product details

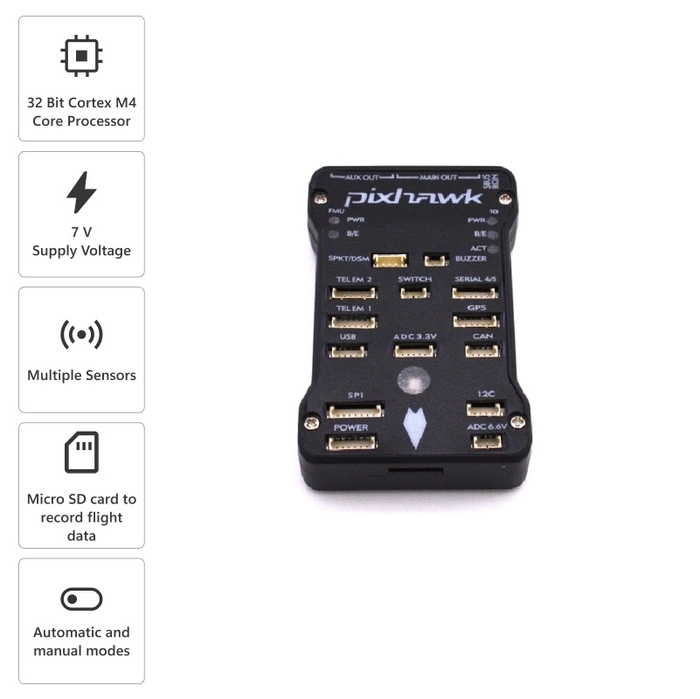

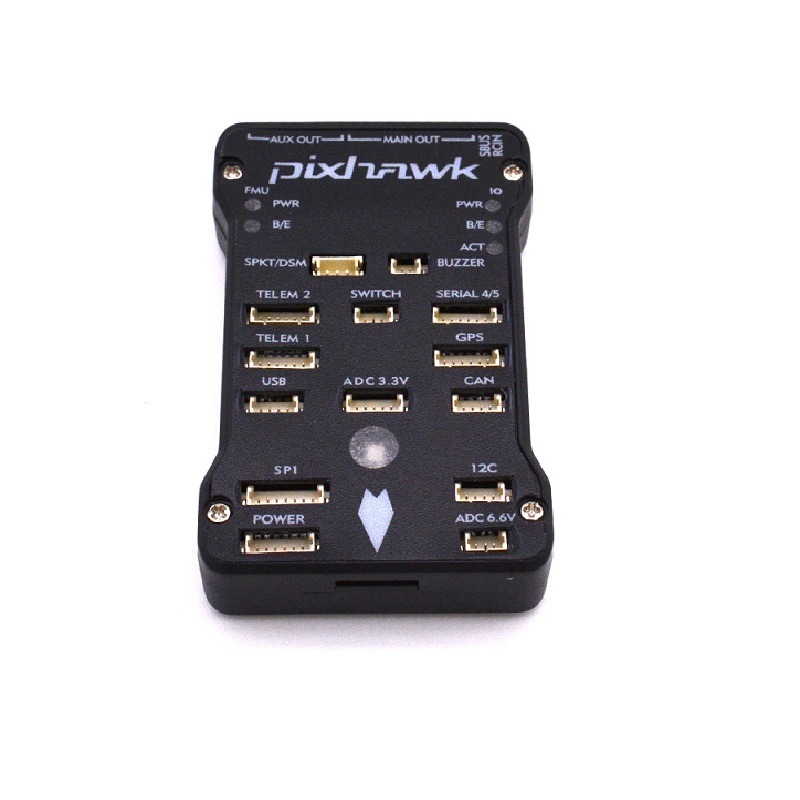

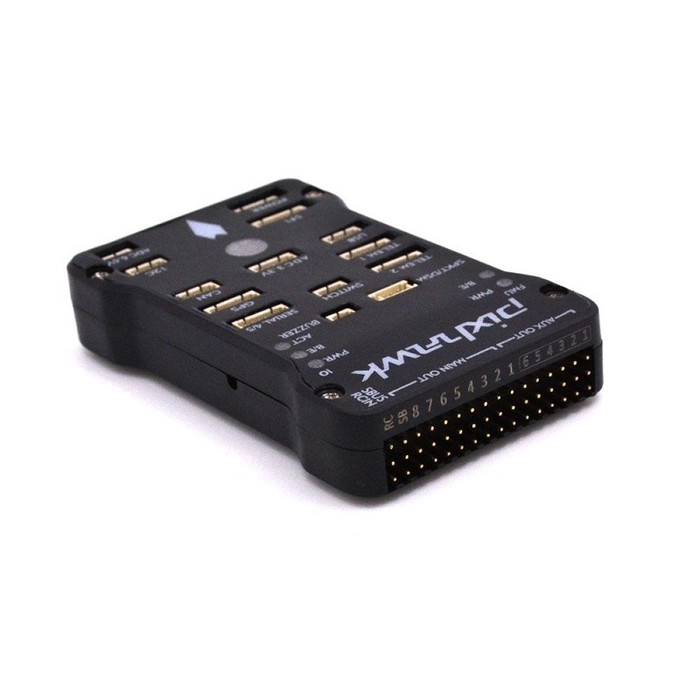

Pixhawk PX4 2.4.8 32-Bit Autopilot Flight Controller

Short Description
The Pixhawk PX4 2.4.8 is a high-performance, 32-bit autopilot-on-module running the PX4 firmware. Ideal for fixed-wing aircraft, multirotors, helicopters, cars, boats and any robotic platform, it combines robust processing, rich I/O, built-in redundancy and professional-grade sensors to deliver rock-solid stability and precision control.

Product Overview
Picking the right flight controller can be daunting—that’s why RoboCube brings you the industry-trusted Pixhawk PX4 2.4.8. Powered by a 168 MHz ARM Cortex-M4 processor with FPU and running the real-time NuttX RTOS, this module automatically detects and configures all peripherals, supports both automatic and manual flight modes, and logs mission data to microSD. Its onboard failsafe co-processor and redundant power inputs ensure your craft remains under control even if one system fails.

Key Features

• 32-bit ARM Cortex-M4 CPU (STM32F427 @ 168 MHz) with 2 MB flash & 128 KB RAM

• Failsafe Co-Processor (STM32F103) and redundant power inputs with auto-failover

• 14 PWM/Servo Outputs for motors, servos and accessories

• Extensive Bus Interfaces: 5 × UART (2 with hardware flow), 2 × CAN, I²C, SPI, PPM, RSSI

• Satellite Receiver Compatibility: Spektrum DSM*/DSM2/DSM-X & Futaba S.BUS

• High-Precision Sensors: L3GD20H gyroscope, X4HBA303H accel/mag, MPU6000 accel/gyro, MS5607 barometer

• Onboard MicroSD Slot for flight data logging

• Status Indicators: Multicolor LEDs + multi-tone buzzer

• Dual USB Ports for firmware updates & configuration

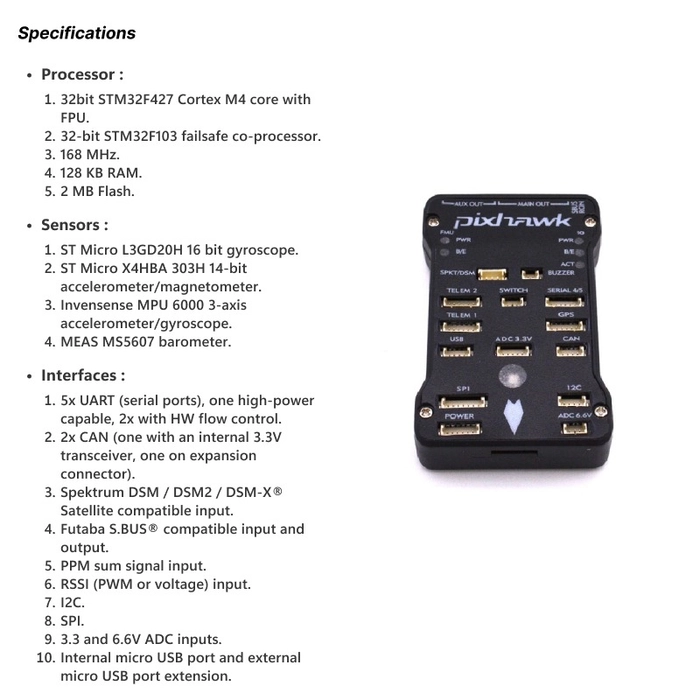

Technical Specifications

• Processor

  • STM32F427 Cortex-M4 with FPU (168 MHz)

  • STM32F103 failsafe co-processor

• Memory: 2 MB Flash, 128 KB RAM

• Sensors

  • 16-bit ST L3GD20H gyroscope

  • 14-bit ST X4HBA303H accelerometer/magnetometer

  • InvenSense MPU-6000 3-axis accel/gyro

  • MEAS MS5607 barometer

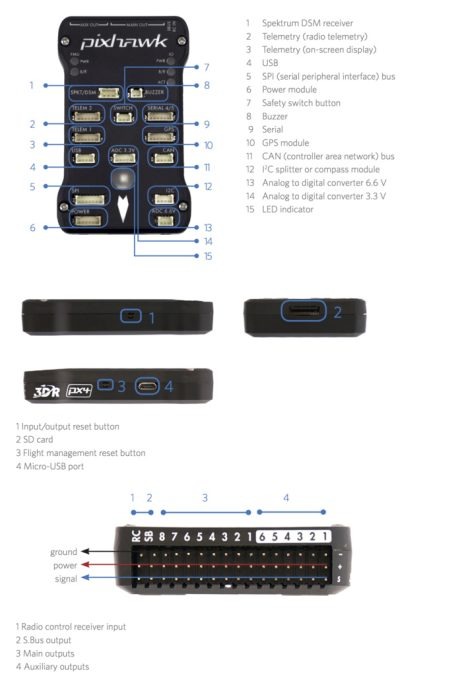

• I/O & Interfaces

  • 14 PWM/servo outputs

  • 5 × UART (serial), 2 × CAN bus

  • I²C, SPI, PPM sum, RSSI (PWM/voltage), ADC (3.3 V & 6.6 V)

  • Spektrum & Futaba satellite inputs

• Dimensions: 82 × 50 × 16 mm

• Weight: 40 g

• Power Input: 7–28 V (2–6 S LiPo)

• Certification: CE, FCC

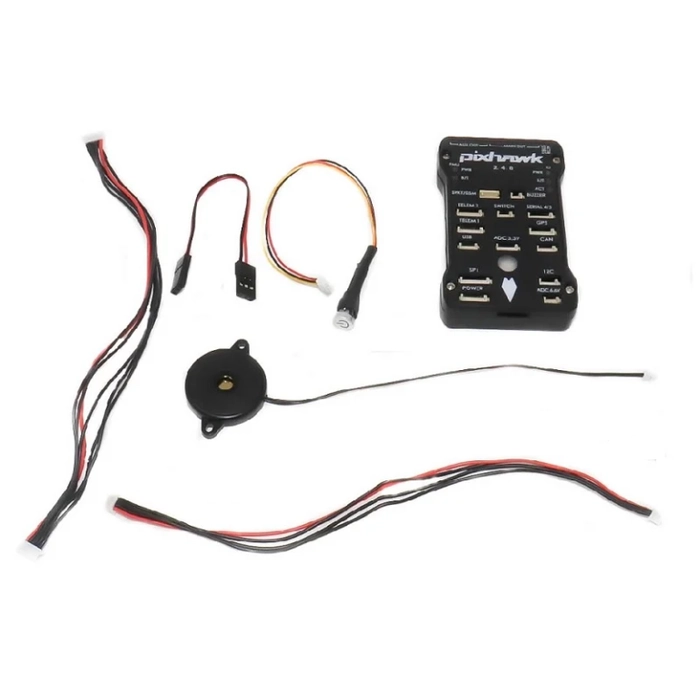

Package Includes

• 1 × Pixhawk PX4 2.4.8 32-Bit Autopilot Flight Controller (with protective shell)

• 3 × Connecting Cables

Warranty & Support

• 15-Day Warranty against manufacturing defects from delivery date

• Warranty voided by misuse, tampering, water/fire damage, or unauthorized modifications

• Full technical support & firmware updates available via PX4 open-source community

–––
Elevate your UAV projects with the Pixhawk PX4 2.4.8—the professional-grade autopilot trusted by researchers, hobbyists, and industry alike.
