Flysky FS-i6X 2.4GHz 6CH AFHDS 2A RC Transmitter With FS-iA10B 2.4GHz 10CH Receiver

Product details

Flysky FS-i6X 2.4 GHz 6CH AFHDS 2A Transmitter + FS-iA10B 2.4 GHz 10CH Receiver Combo

The Flysky FS-i6X & FS-iA10B combo delivers reliable, interference-resistant control for multirotors, airplanes, gliders, and helicopters. Featuring AFHDS 2A spread-spectrum technology, this kit automatically hops frequencies to minimize dropouts while keeping power draw low. The ergonomic FS-i6X transmitter offers a crisp, backlit LCD, 20 model memories, trainer port, and telemetry—all in a lightweight 392 g package. Its partner, the FS-iA10B receiver, provides 10 channels of high-sensitivity reception (–105 dBm) with dual-antenna diversity and i-BUS connectivity for seamless integration. Pre-bound at the factory for instant setup, this affordable Flysky system is ideal for both newcomers and seasoned hobbyists looking for dependable range and functionality.

Key Features

• AFHDS 2A automatic frequency-hopping spread-spectrum

• 6 channels on TX / 10 channels on RX with telemetry support

• Pre-bound transmitter & receiver for plug-and-play setup

• 20 model memory slots + trainer port for student/pilot link

• Backlit 128×64 STN LCD shows real-time TX/RX voltage

• Dual-antenna diversity on receiver for robust signal

• Lightweight, ergonomic TX with metal gimbals and Hall sensors

Technical Specifications

• RF Range: 2.408 – 2.475 GHz (135 channels)

• RF Power: < 20 dBm

• Bandwidth: 500 kHz

• Modulation: GFSK

• Stick Resolution: 4096 steps

• Low-Voltage Warning: < 4.2 V (TX)

• TX Power Input: 6 V DC @ 1.5 A

• TX Weight: 392 g; TX Size: 174 × 89 × 190 mm

• RX Sensitivity: –105 dBm; RX Input: 4.0 – 6.5 V DC

• RX Weight: 19.3 g; RX Dimensions: 47 × 33.1 × 14.7 mm

• Certifications: CE0678, FCC

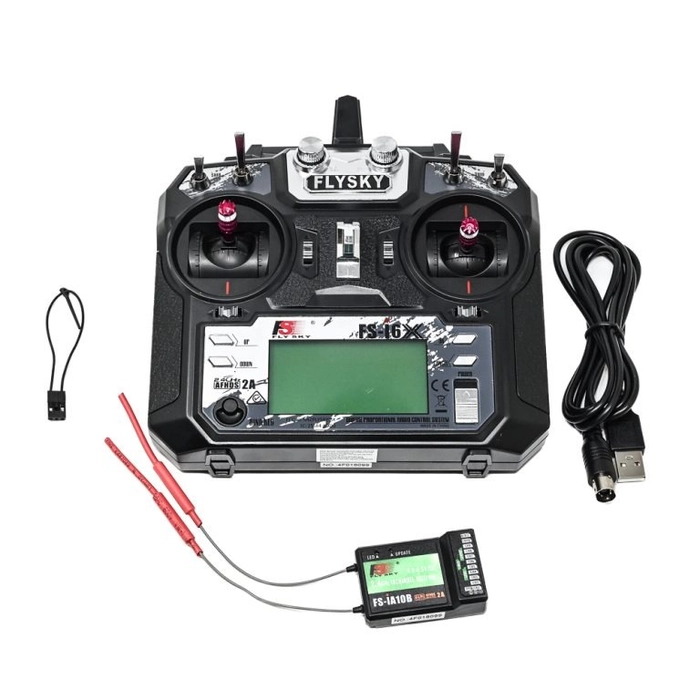

What’s in the Box

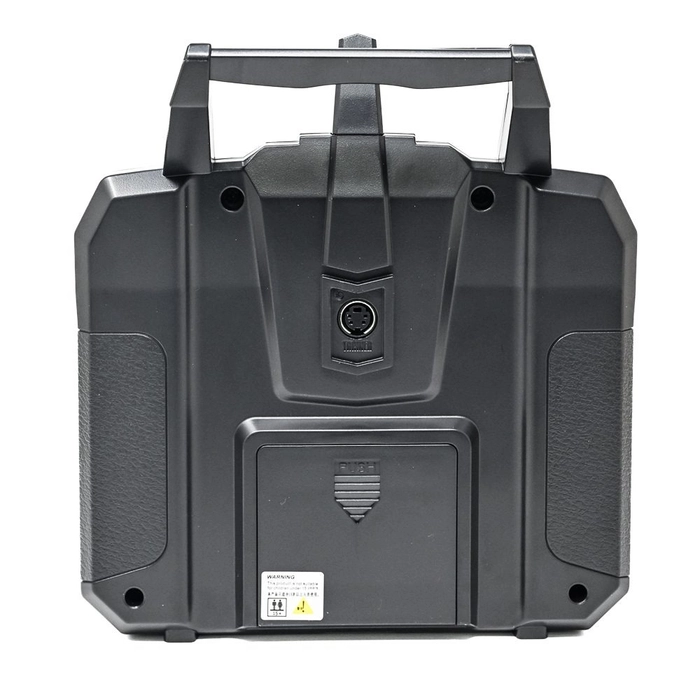

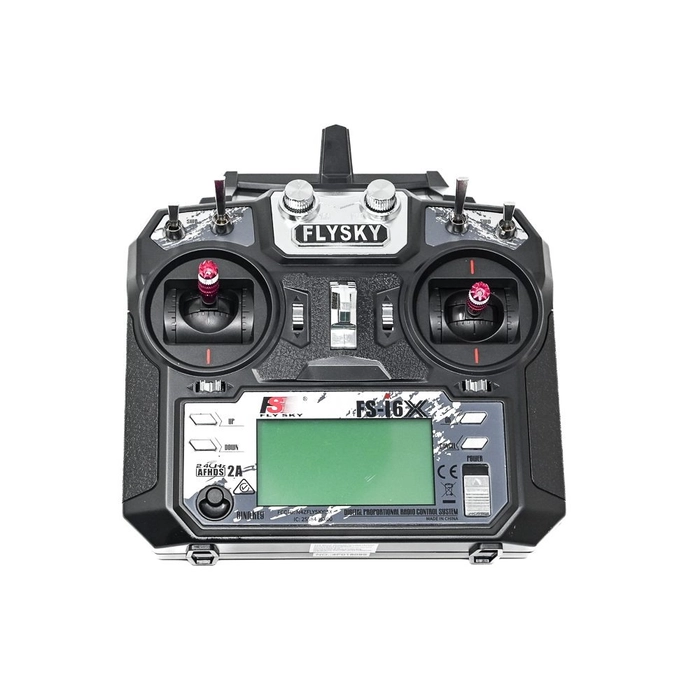

• 1× Flysky FS-i6X 6-channel 2.4 GHz AFHDS 2A Transmitter

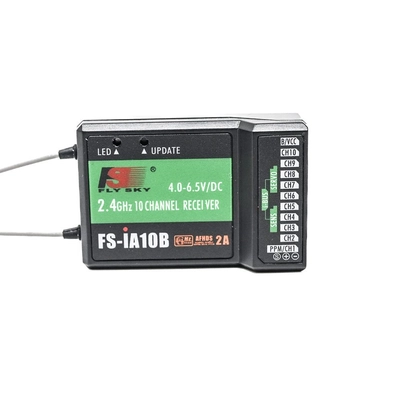

• 1× FS-iA10B 10-channel 2.4 GHz Receiver (with binding cable)

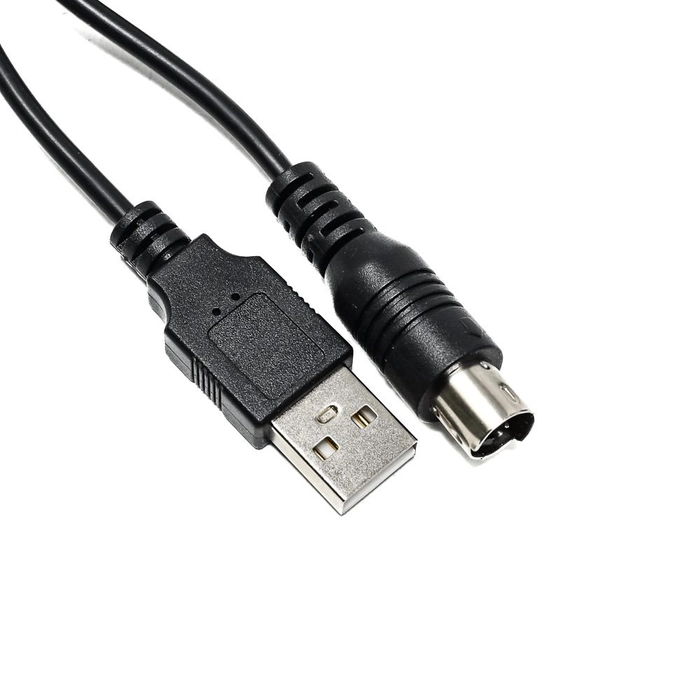

• 1× PS/2 to USB Update Cable

• 1× User Manual
